SEGA SATURN DEVELOPER'S MANUAL

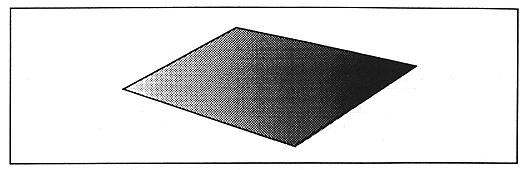

Figure 3.8 Gouraud shading example

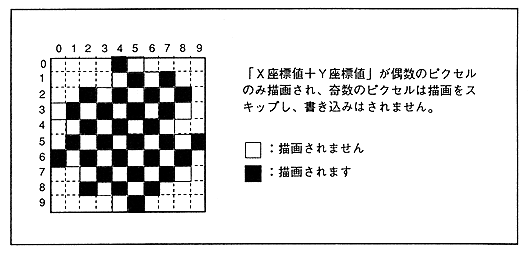

● Mesh processing: All parts can be meshed. When the mesh is applied, the part is drawn in a grid pattern every other dot.
Figure 3.9 Example of mesh processing
