Chapter 4 SCSP Register

4.1 Register map

SCSP has a waveform calculation unit called a slot to realize FM speech synthesis.

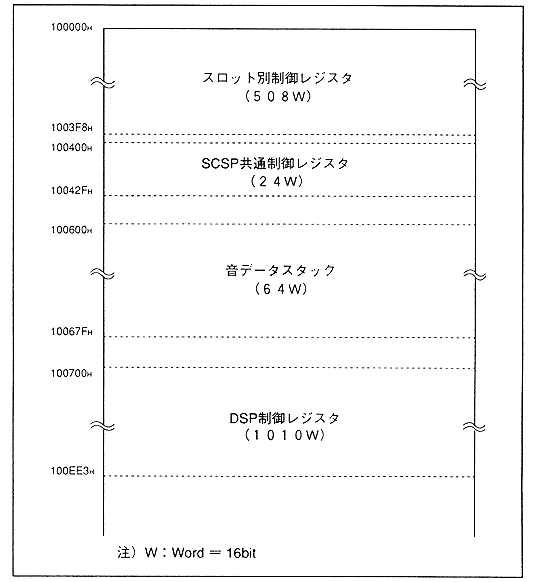

Figure 4.1 describes the SCSP memory map and the allocation of each register configured in the memory map.

Figure 4.1 SCSP memory map (1906W)
