The slot-specific control register indicates the register allocation configured in each of the 32 slots (SLOT0 to SLOT31).
∙ The bit allocation position of each register is expressed as [3: 0]. For example, SA [19:16] indicates that the 16th to 19th bits of SA are allocated.

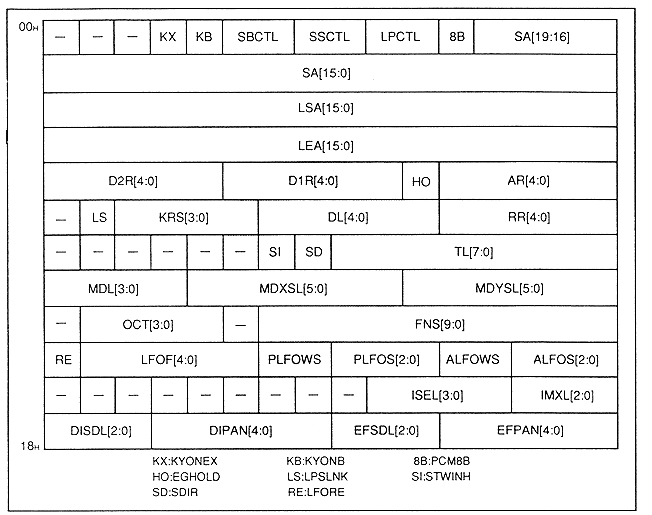

Figure 4.2 Slot-specific control register

Table 4.1 Control register by slot (1)
Name Content
KYONEX (KX) KEY_ON execution
KYONB (KB) KEY_ON,
KEY_OFF registration
SBCTL Source bit control
SSCTL Sound source control
LPCTL Loop control
PCM8B (8B) Select waveform data word length (format)
SA Start address
LSA Loop start address
