Commonly used registers such as interrupt control registers and timer registers are allocated to the SCSP control registers.

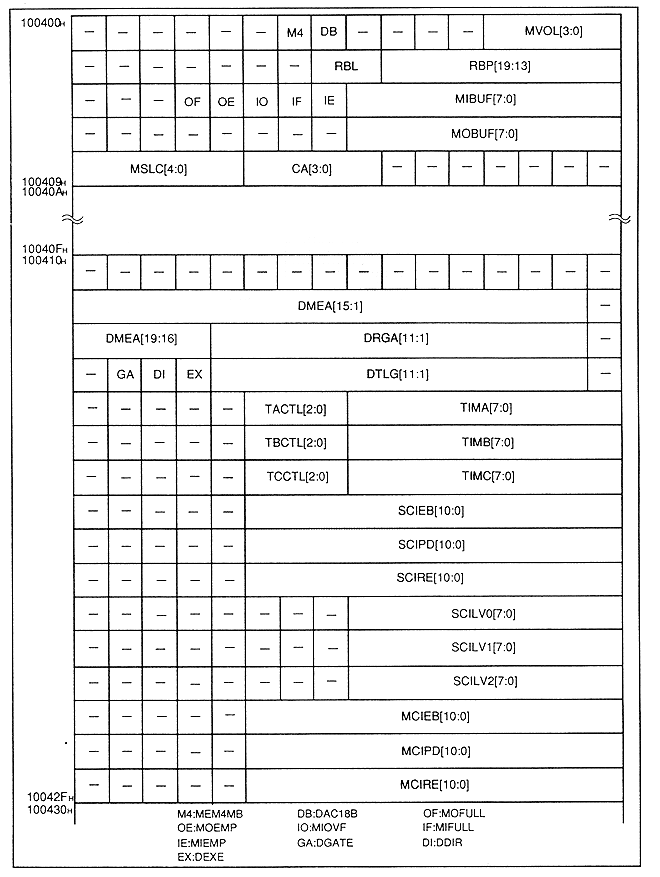

Figure 4.3 SCSP Common Control Register
