Table 4.31 EFSDL and EFPAN register addresses corresponding to each EFREG and EXTS

Source

Address

Data

source

address

data

EFREG0

100017H

EFSDL0

EFPAN0

EFREG9

100137H

EFSDL9

EFPAN9

EFREG1

100037H

EFSDL1

EFPAN1

EFREG10

100157H

EFSDL10

EFPAN10

EFREG2

100057H

EFSDL2

EFPAN2

EFREG11

100177H

EFSDL11

EFPAN11

EFREG3

100077H

EFSDL3

EFPAN3

EFREG12

100197H

EFSDL12

EFPAN12

EFREG4

100097H

EFSDL4

EFPAN4

EFREG13

1001B7H

EFSDL13

EFPAN13

EFREG5

1000B7H

EFSDL5

EFPAN5

EFREG14

1001D7H

EFSDL14

EFPAN14

EFREG6

1000D7H

EFSDL6

EFPAN6

EFREG15

1001F7H

EFSDL15

EFPAN15

EFREG7

1000F7H

EFSDL7

EFPAN7

EXTS0

100217H

EFSDL16

EFPAN16

EFREG8

100117H

EFSDL8

EFPAN8

EXTS1

100237H

EFSDL17

EFPAN17

MVOL [3: 0] (W); Master VOLume

Indicates the output master volume to the D / A converter.
This is to control the overall output level. Clipping noise does not disappear even if the gain is lowered by lowering the "MVOL" setting value for the output overflow (To eliminate clipping noise) Please reset "DISDL" and "EFSDL" to eliminate the overflow).

DAC18B (W); DAC out 18Bit

Set this bit to “1B” when the digital output is used as an interface of an 18-bit D / A converter. For 16 bits, set "0B". (Basically, a 16-bit type D / A converter is connected, so set "0B" in the register.)

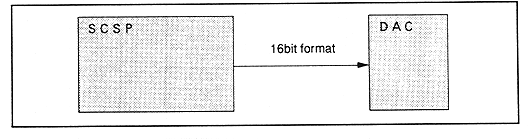

Figure 4.57: Connection between SCSP and DAC
