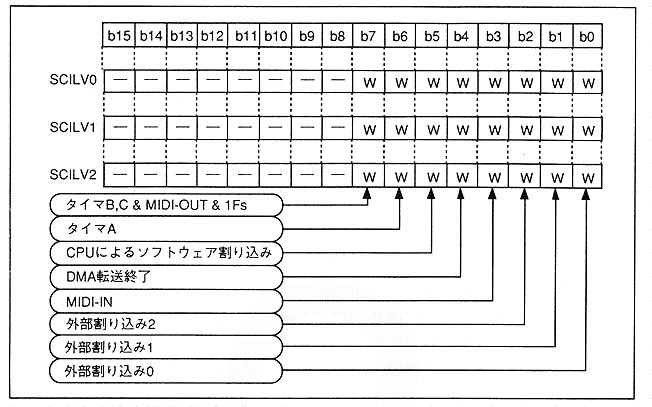

Figure 4.65 Interrupt Level Setting Register Format

SCILV0 [7: 0] (W); Sound-Cpu Interrupt LeVel bit0
Specifies bit 0 of the interrupt level code to the sound CPU defined with bit support.

SCILV1 [7: 0] (W); Sound-Cpu Interrupt LeVel bit1
Specifies bit 1 of the interrupt level code to the sound CPU defined with bit support.

SCILV2 [7: 0] (W); Sound-Cpu Interrupt LeVel bit2
Specifies bit 2 of the interrupt level code to the sound CPU defined with bit support.
