Chapter 5 DSP Operation in SCSP

5.1 DSP configuration

Figure 5.1 shows the DSP configuration diagram.

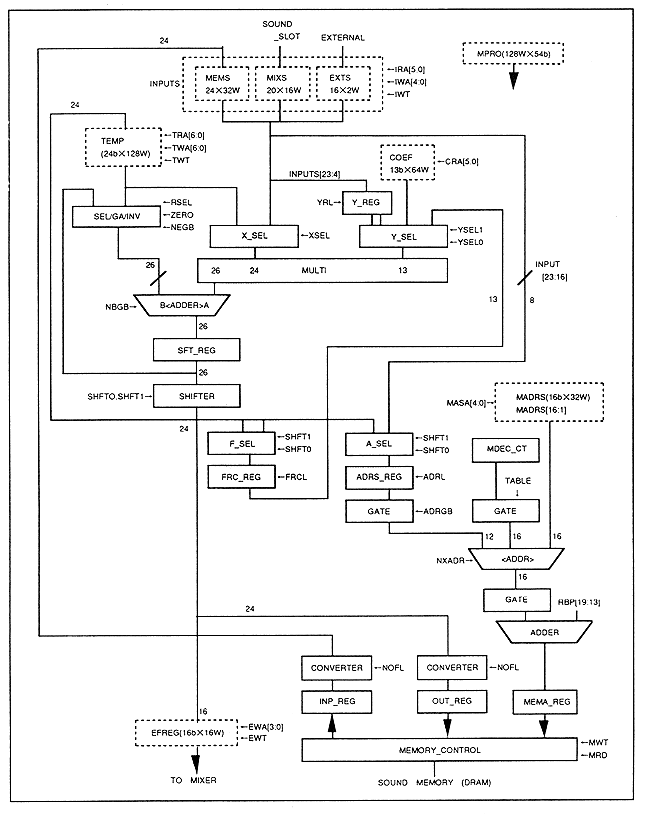

Figure 5.1 DSP configuration diagram
