dB (dB)
This is the unit expressed using the logarithm to compare the volume. Expressed as an expression,

It will be.
Specifically, when the volume to be compared is double the reference volume (waveform amplitude), the volume ratio is 6 [dB]. Also, 1 times is 0 [dB], 3 times is 10 [dB].
Conversely, if the volume to be compared is lower than the standard volume, this value [dB] takes a negative value (a negative value). For example, when it is 1/2 times the standard, it will be -6 [dB].

Modulator

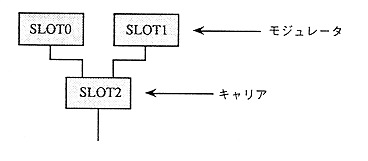

This refers to the slot on which modulation is applied when multiple slots are connected. In the figure below, SLOT0 and SLOT1 are modulators.

Carrier
This refers to the slot that can be modulated when multiple slots are connected. In the figure below, SLOT2 is the carrier.

Prescaler
This function allows you to set the time required when the timer counter increases by 1. Time selection and time specification are performed for each timer.
