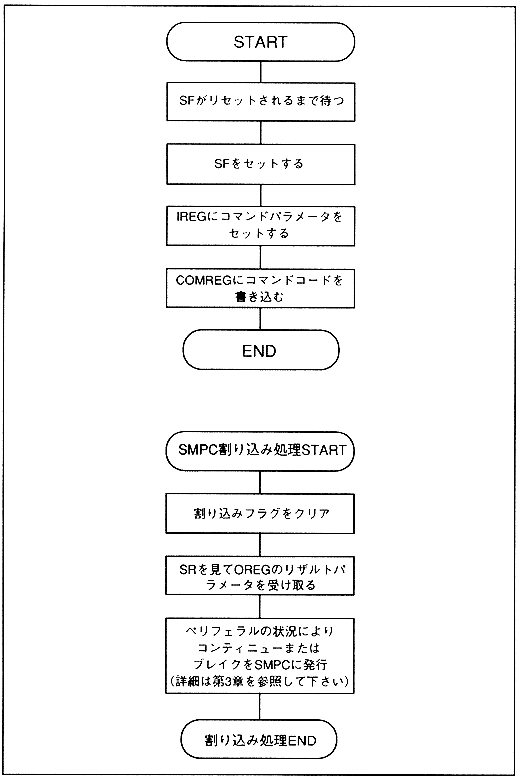

Figure 2.4 Class D command flow

Note) Masking SMPC interrupt (without using SMPC interrupt) and polling SMPC interrupt flag and SF
clear after issuing command
processing similar to SMPC interrupt routine Can be executed.
