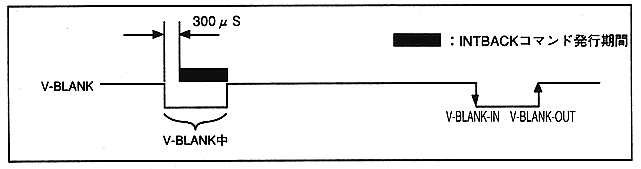

Figure 2.5 INTBACK command issue timing

● INTBACK command issuance timing after execution of SYSRES, CCKHG320, CCKHG352 command

The command execution time takes 100msec or more for the commands above. When issuing an INTBACK command after executing these commands, wait until the next V-BLANK-IN. Figure 2.6 shows the INTBACK command issuance timing after executing the SYSRES, CKCHG320, and CKCHG352 commands.
In addition, please issue SYSRES, CKCHG320, CKCHG352 command timing after V-BLANK-IN after 300μS and before V-BLANK-IN.

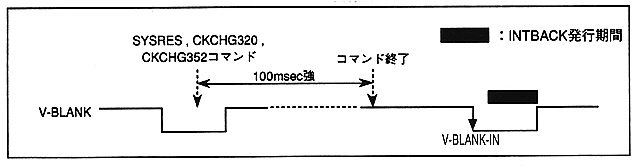

Figure 2.6 INTBACK command issue timing after executing SYSRES, CCKHG320, CCKHG352 command

● Other command issuance timing

After issuing other commands, if you do not issue an INTBACK command in the same frame, issue it after V-BLANK-IN and after 300 μS, before the next V-BLANK-IN. When other commands are issued after V-BLANK-IN after 300μS, and INTBACK commands are issued in the same frame, issue INTBACK commands before V-BLANK-OUT. Figure 2.7 shows the timing of issuing other commands.
