● Result parameter configuration in 0 byte mode

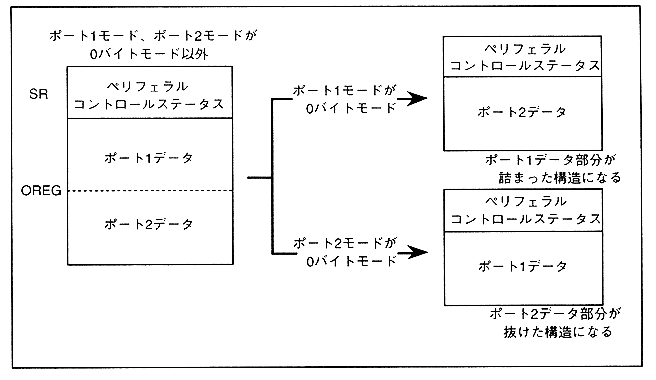

Figure 3.11 shows the data structure when one is in 0 byte mode.
Figure 3.11 Result parameter configuration when one is in 0 byte mode
As described above, the structure of the result parameter differs depending on the command parameter setting conditions. Table 3.4 shows the relationship between the command parameter setting conditions and the generated result parameter configuration.
