SH-2 direct mode

● Block diagram

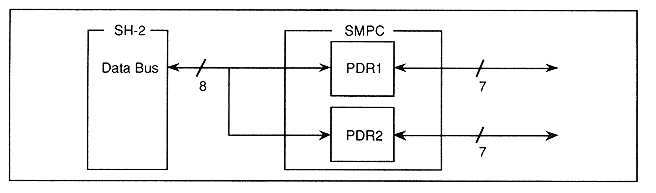

Figure 3.21 shows a block diagram of the SH-2 direct mode. SH-2 can directly access peripherals via two I / O port data registers (PDR1, PDR2) in SMPC.

Figure 3.21 SH-2 direct mode block diagram

● Features

This mode is an effective method in the following cases.
  1. When controlling a peripheral that requires faster access than can be accessed in SMPC control mode When data output is required for
  2. peripheral
  3. When access is required to a peripheral that requires an external latch
  4. When you need to access a peripheral that is not supported by SMPC
