1.2 SCU mapping

SCU operates according to the map shown in Figure 1.3.

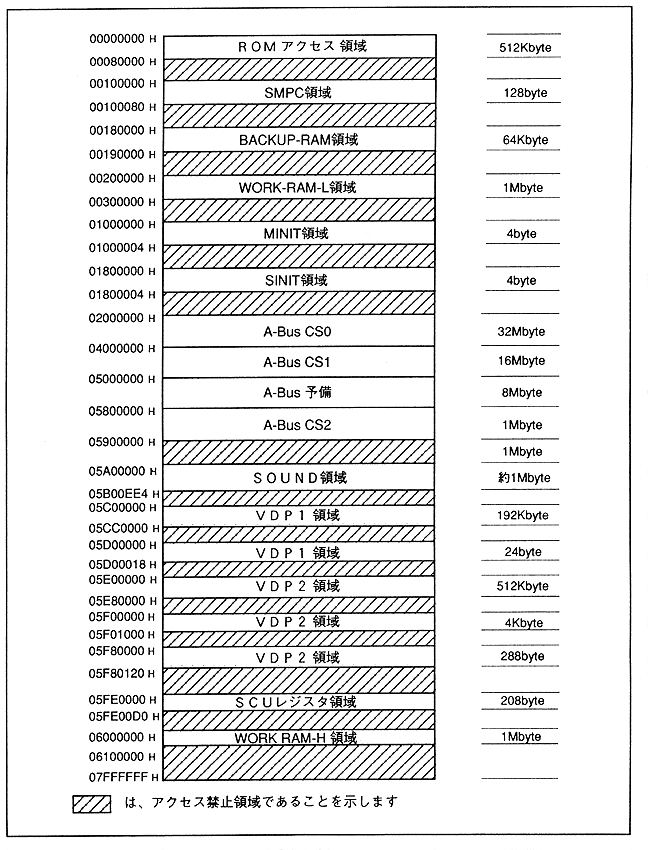

Figure 1.3 SCU mapping (Cashe_address)
