6.6 CMDSIZE (character size)
- Specify the character pattern size in multiples of 8 for horizontal (X) and 1 pixel for vertical (Y).
- Besides 5 bits, you can specify a value between 1 and 63. Since it is in 8 pixel units, the actual size can be 8 to 504 pixels. Do not specify 0.
- Vertical is 8 bits and a value between 1 and 255 can be specified. Do not specify 0.

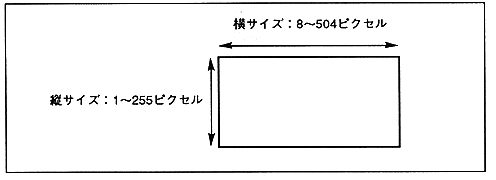

Figure 6.19 CMDSIZE
- The relationship between the value defined in the command table and the number of drawing pixels is as follows.
Table 6.5 Relationship between setting value and drawing pixel
Horizontal (X) direction
Vertical (Y) direction
Setting value in command table
Number of pixels to be drawnSet value to command table
Number of pixels to be drawn0
Setting prohibited
0
Setting prohibited
1
8
1
1
2
16
2
2
:
:
:
:
63
504
255
255
