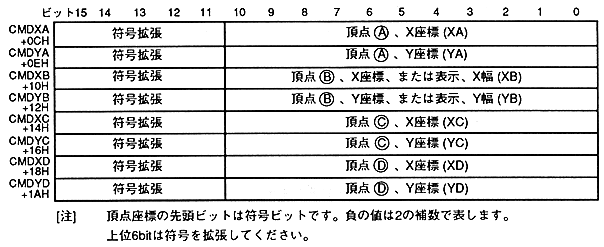

• The coordinates are 16bit each and are specified in CMDXA to CMDYD Negative numbers are specified in 2's complement. The range that can be specified is -1024 to 1023. The upper 5 bits are the same as bit 10 for sign extension.

• The meaning of CMDXA to CMDYD varies depending on each command. The correspondence between commands and CMDXA to CMDYD is as follows. Refer to each command for details.

Table 6.6 Correspondence between commands and CMDXA to CMDYD

Command		CMDXA CMDYA	CMDXB CMDYB	CMDXC CMDYC	CMDXD CMDYD
Standard sprite drawing command		Vertex (A)	-	-	-
Rectangle sprite drawing command (There are two methods)	Specify two coordinates	Vertex (A)	−	Vertex (C )	−
	Fixed point specification	Fixed point coordinates	Display width	-	-
Transform sprite drawing command		Vertex (A)	Vertex (B)	Vertex (C)	Vertex (D)
Polygon drawing command		Vertex (A)	Vertex (B)	Vertex (C)	Vertex (D)
Polyline drawing command		Vertex (A)	Vertex (B)	Vertex (C)	Vertex (D)
Line drawing command		Vertex (A)	Vertex (B)	-	-
User clipping coordinate setting command		Upper left coordinate	−	bottom right coordinates	−
System clipping coordinate setting command		−	−	bottom right coordinates	−
Relative coordinate setting command		Relative coordinate	−	−
