■ 7.3 Relative coordinate setting command
∙ Relative coordinate setting command when the command selection bit is 1010B.

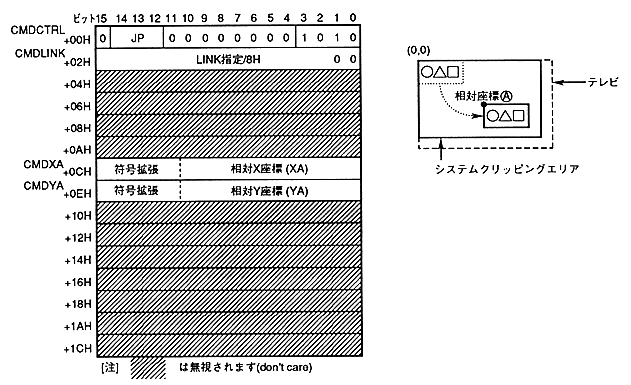

The contents of the command table are as follows.
The relative coordinate setting command is defined as follows.
- If the end bit is set to 0B and the command selection bit is set to 1010B, it becomes a relative coordinate setting command.
- Specify the jump format. When the jump format is assign or call, divide the address of the command table to be processed next by 8H and set to CMDLINK.
- The relative coordinates are defined in CMDXA, CMDYA.
