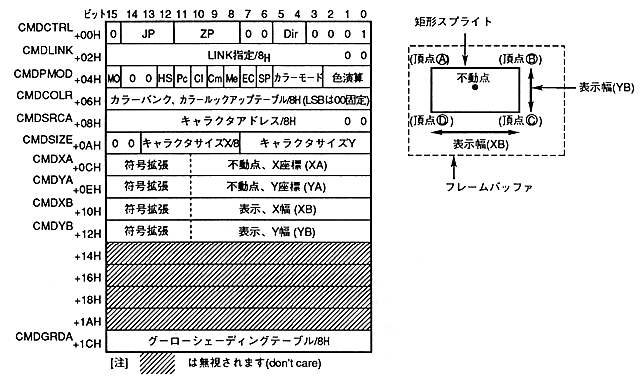

The fixed point specification of the rectangle sprite drawing command is defined as follows

• If the end bit is set to 0B and the command selection bit is set to 0001B, it becomes a rectangular sprite drawing command.

• Specify the jump format. When the jump format is assign or call, divide the address of the command table to be processed next by 8H and set to CMDLINK.

• Set the zoom point. If the zoom point (fixed point) is set to a value other than 0000B, the fixed point is specified. When 0000B is set, two coordinate points are specified.

• For details on the zoom point, see " Zoom Point " in " Chapter 6 Command Table ".

• Set the character pattern reading direction. You can draw by flipping upside down or left and right by specifying the reading direction.

• Set high speed shrink. Specify accuracy priority or speed priority.

• Set pre-clipping. Specify valid or invalid considering the clipping area and drawing position of the part.
