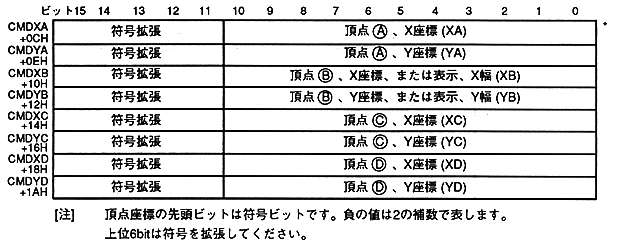

Table 8.6 Correspondence between commands and CMDXA to CMDYD

Command		CMDXA CMDYA	CMDXB CMDYB	CMDXC CMDYC	CMDXD CMDYD
Standard sprite drawing command		Vertex (A)	-	-	-
Rectangle sprite drawing command (There are two methods)	Specify two coordinates	Vertex (A)	−	Vertex (C )	−
	Fixed point specification	Fixed point coordinates	Display width	-	-
Transform sprite drawing command		Vertex (A)	Vertex (B)	Vertex (C)	Vertex (D)
Polygon drawing command		Vertex (A)	Vertex (B)	Vertex (C)	Vertex (D)
Polyline drawing command		Vertex (A)	Vertex (B) / TD>	Vertex (C)	Vertex (D)
Line drawing command		Vertex (A)	Vertex (B)	-	-
User clipping coordinate setting command		Upper left coordinate	−	bottom right coordinates	−
System clipping coordinate setting command		−	−	bottom right coordinates	−
Relative coordinate setting command		Relative coordinate	−	−	Return to previous page ｜ Return to menu ｜ Go to next page
