■ Access to vertical cell scroll table data

When using the vertical cell scroll function in NBG0 and NBG1, the vertical cell scroll table data must be read in addition to the pattern name data and character pattern data (bitmap pattern data). Vertical cell scroll table data read access is required once per cycle per cycle. The vertical cell scroll table data read access for NBG0 must be specified at the timing of T0 or T1, and the vertical cell scroll table data read access of NBG1 must be specified at the timing from T0 to T2. Hmm. Also, access for NBG0 and NBG1 must be specified in the same bank, and access for NBG0 must be specified first.
When specifying the same vertical cell scroll table data read access for multiple banks, it must be specified at the same access timing.
∙ Access specification restrictions for vertical cell scroll table data are shown in Figure 3.5.

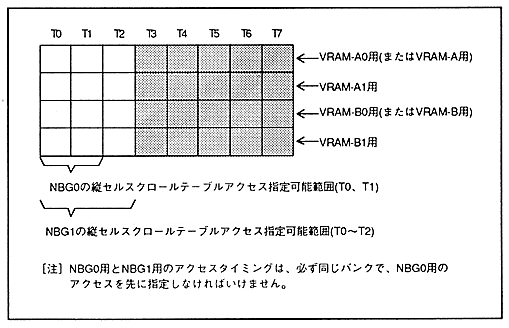

Figure 3.5: Restricted access specification for vertical cell scroll table data

■ Read / write access by CPU

When performing read / write access to the VRAM by the CPU during the screen display period, the timing must be set in the VRAM cycle pattern register. When VRAM access is requested by the CPU, VDP2 waits until the timing specified for CPU read / write access is reached, and permits access only at that timing. If read / write access by the CPU is not requested, nothing is done to the VRAM at the specified timing. Also, if the access by the CPU is read access, it can be read
