4.5 Character control register

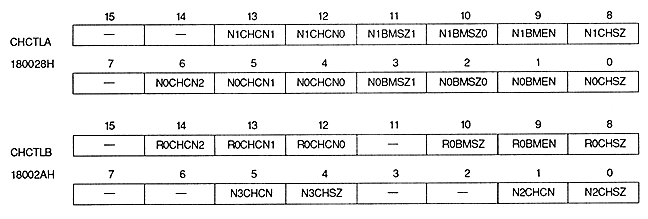

The character control register selects the cell format and bitmap format, specifies the number of character (bitmap) colors, and specifies the character pattern or bitmap size. This is a write-only 16-bit register located at addresses 180028H to 18002AH. The value is cleared to 0 after power-on or reset, so be sure to set it.

Character color number bit : Character color number bit

(N0CHCN2 to N0CHCN0, N1CHCN1, N1CHCN0, N2CHCN, N3CHCN, R0CHCN2 to R0CHCN0)
Specify the number of character colors for each screen. When displaying in bitmap format, specify the number of bitmap colors.

 N0CHCN2 to N0CHCN0
 180028H
 bits 6-4
 for NBG0 (or RBG1)
 N1CHCN1, N1CHCN0
 180028H
 bits 13, 12
 NBG1 (or EXBG)
 N2CHCN
 18002AH
 bit 1
 NBG2
 N3CHCN
 18002AH
 bit 5
 NBG3
 R0CHCN2 to R0CHCN0
 18002AH
 bits 14 to 12
 for RBG0

 16 colors
 256 colors
 2048 colors
 32768 colors
 16.77 million colors
 Setting prohibited (Do not set)
 Setting prohibited (Do not set)
 Setting prohibited (Do not set)

N0CHCN2
N0CHCN1

 N0CHCN0
 TV screen mode
 Color format
 Normal
 High Resolution
 Dedicated
 Monitor
0
0
0

 16 colors
 16 colors
 pallet format
0
0
1

 256 colors
 256 colors
 pallet format
0
1
0

 2048 colors
 2048 colors
 pallet format
0
1
1

 32768 colors
 32768 colors
 RGB format
1
0
0

 Setting prohibited
 Setting prohibited
 RGB format
1
0
1
1
1
0
1
1
1
[Note] When used as RBG1, it cannot be displayed in the dedicated monitor mode.
