Screen scroll value bit : Scroll bit

(N0SCXI10~N0SCXI0, N0SCXD1~N0SCXD8, N0SCYI10~N0SCYI0, N0SCYD1~N0SCYD8, N1SCXI10~N1SCXI0, N1SCXD1~N1SCXD8, N1SCYI10~N1SCYI0, N1SCYD1~N1SCYD8, N2SCX10~N2SCX0, N2SCY10~N2SCY0, N3SCX10~N3SCX0, N3SCY10~ N3SCY0)
∙ Specify the horizontal and vertical screen scroll values ​​(coordinate values) for each normal scroll screen.

N0SCXI10 to N0SCXI0 180070H Bits 10 to 0 NBG0 For horizontal direction (integer part)
N0SCXD1 to N0SCXD8 180072H bits 15 to 8 NBG0 horizontal direction (decimal part)
N0SCYI10 to N0SCYI0 180074H Bits 10 to 0 NBG0 for vertical direction (integer part)
N0SCYD1 to N0SCYD8 180076H bits 15 to 8 NBG0 for vertical direction (decimal part)
N1SCXI10 to N1SCXI0 180080H Bits 10 to 0 NBG1 for horizontal direction (integer part)
N1SCXD1 to N1SCXD8 180082H bits 15 to 8 NBG1 horizontal direction (decimal part)
N1SCYI10 to N1SCYI0 180084H Bits 10 to 0 NBG1 for vertical direction (integer part)
N1SCYD1 to N1SCYD8 180086H bits 15 to 8 NBG1 for vertical direction (decimal part)

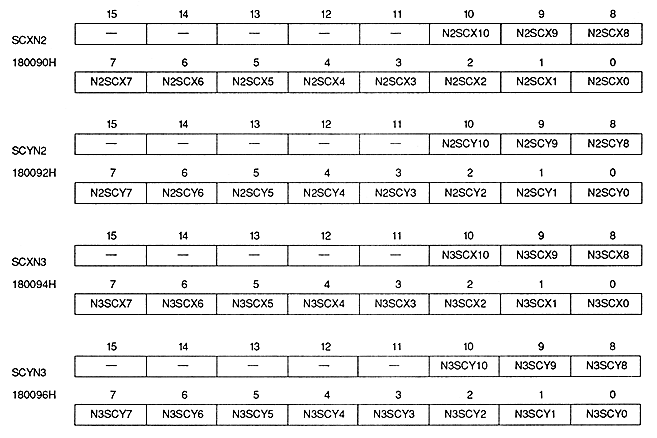

N2SCX10 to N2SCX0 180090H bits 10 to 0 NBG2 horizontal direction
N2SCY10 to N2SCY0 180092H Bits 10 to 0 NBG2 vertical direction
N3SCX10 to N3SCX0 180094H bits 10 to 0 NBG3 horizontal direction
N3SCY10 to N3SCY0 180096H bits 10 to 0 NBG3 vertical direction
