SEGA SATURN DEVELOPER'S MANUAL

Figure 5.7 shows the bit structure of the vertical cell scroll table data, and Figure 5.8 shows the structure of the vertical cell scroll table.

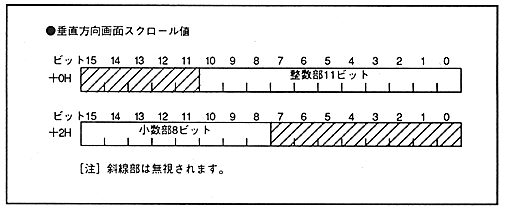

Figure 5.7 Data structure on the vertical cell scroll table
