Palette format sprite dot color data is shown in Figure 10.1, and the sprite color RAM address is shown in Figure 10.2.

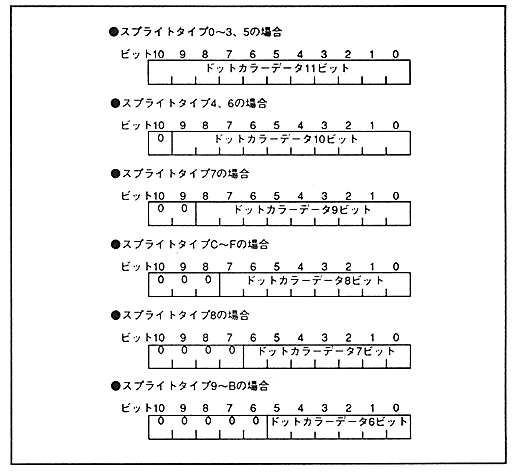

Figure 10.1 Sprite dot color data in palette format

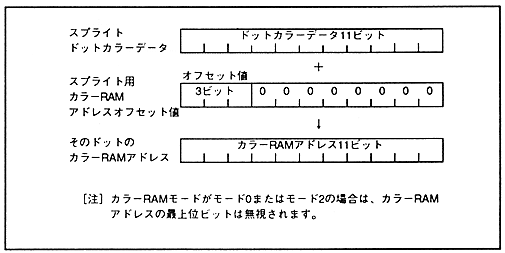

Figure 10.2. Sprite color RAM address
