Color RAM address offset register

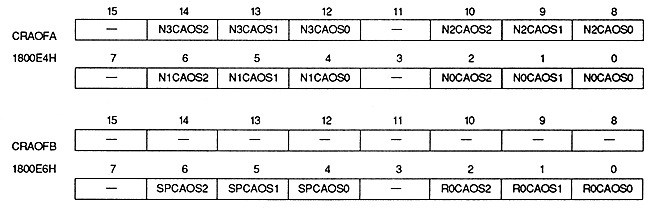

Color RAM address offset register specifies the color RAM address offset value for the sprite and each scroll screen. This is a write-only 16-bit register located between 1800E4H and 1800E6H The value is cleared to 0 after power-on or reset, so be sure to set it.

Color RAM address offset bit : Color RAM address offset bit

(N0CAOS2 to N0CAOS0, N1CAOS2 to N1CAOS0, N2CAOS2 to N2CAOS0, N3CAOS2 to N3CAOS0, R0CAOS2 to R0CAOS0, SPCAOS2 to SPCAOS0)
Specified color RAM address offset value for sprite and each scroll screen.

N0CAOS2 to N0CAOS0 1800E4H Bits 2 to 0 NBG0 (Or RBG1)
N1CAOS2 to N1CAOS0 1800E4H bits 6 to 4 For NBG1 (or EXBG)
N2CAOS2 to N2CAOS0 1800E4H Bits 10 to 8 For NBG2
N3CAOS2 to N3CAOS0 1800E4H Bits 14 to 12 For NBG3
R0CAOS2 to R0CAOS0 1800E6H Bits 2 to 0 For RBG0
SPCAOS2 to SPCAOS0 1800E6H bits 6 to 4 For sprites

The actual color RAM address offset value is calculated using the following formula. When the color RAM mode is mode 0 or mode 2, the most significant bit of the color RAM address resulting from adding the color RAM address offset value is ignored.

-When color RAM mode is mode 0 or mode 1
(Color RAM address offset value)
* = (Color RAM address offset register value 3 bits) x 200H

When color RAM mode is mode 2
(Color RAM address offset value)
* = (Color RAM address offset register value 3 bits) x 400H
