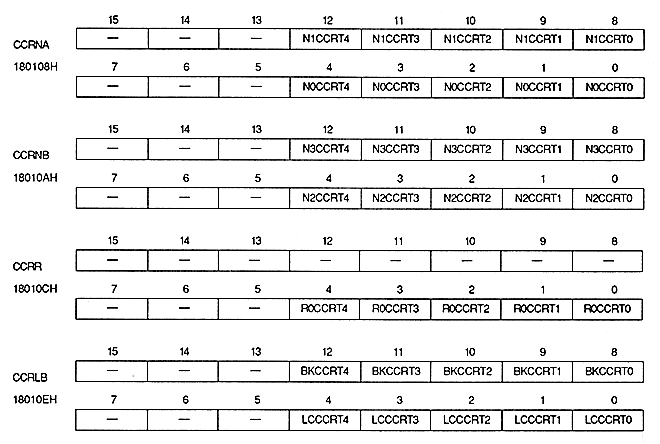

Color calculation ratio register
Color calculation ratio bit (for scroll screen) : Color calculation ratio bit
Specify the color calculation ratio for each scroll screen. The color calculation ratio is for 1/32 times the RGB color data.
| N0CCRT4 to N0CCRT0 | 180108H | bits 4 to 0 | NBG0 (Or RBG1) |
| N1CCRT4 to N1CCRT0 | 180108H | bits 12 to 8 | For NBG1 (or EXBG) |
| N2CCRT4 to N2CCRT0 | 18010AH | Bits 4 to 0 | For NBG2 |
| N3CCRT4 to N3CCRT0 | 18010AH | Bits 12 to 8 | For NBG3 |
| R0CCRT4 to R0CCRT0 | 18010CH | Bits 4 to 0 | For RBG0 |
| LCCCRT4 ~ LCCCRT0 | 18010EH | bits 4-0 | For LNCL |
| BKCCRT4 to BKCCRT0 | 18010EH | Bits 12 to 8 | For BACK |
