● Screen display enable

Transparent enable bit : Transparent enable bit (N0TPON, N1TPON, N2TPON, N3TPON, R0TPON)

Specify whether to disable the transparent code.

N0TPON
180020H
 bit 8
 NBG0 (or RBG1)
 N1TPON
 180020H
 bit 9
 NBG1 (or EXBG)
 N2TPON
 180020H
 bit 10
 NBG2
 N3TPON
 180020H
 bit 11
 NBG3
 R0TPON
 180020H
 bit 12
 for RBG0

 xxTPON
 Processing
 0
 Enable transparent code (transparent code dots will be transparent)
 1
 Disable transparent code (dots in transparent code are displayed according to their data values. )
[Note] N0, N1, N2, N3, or R0 is entered in the bit name xx.

Screen display enable bit : On bit (N0ON, N1ON, N2ON, N3ON, R0ON, R1ON)
Specify whether to display each scroll screen.

N0ON
180020H
 bit 0
 NBG0
 N1ON
 180020H
 bit 1
 NBG1
 N2ON
 180020H
 bit 2
 NBG2
 N3ON
 180020H
 bit 3
 NBG3
 R0ON
 180020H
 bit 4
 for RBG0
 R1ON
 180020H
 bit 5
 for RBG1

 xxON
 Processing
 0
 Cannot display (does not access VRAM for display)
 1
 Can view
[Note] N0, N1, N2, N3, R0, or R1 is entered in the bit name xx.

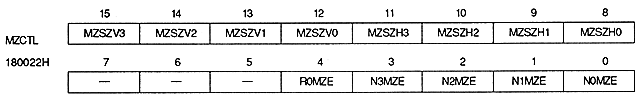

Mosaic control
