Pattern name
 Data size

 Character size

 Capacity per page


 Boundary when storing VRAM

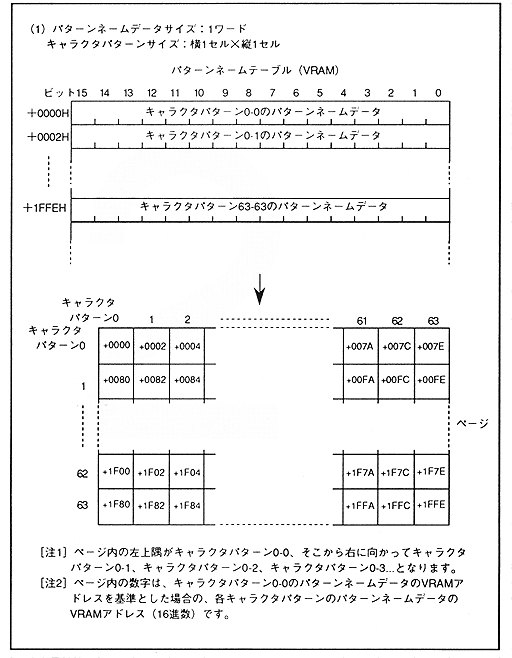

 1 word

 1 horizontal cell x 1 vertical cell

 8192 bytes

 2000H

 2 horizontal cells x 2 vertical cells

 2048 bytes

 800H

 2 words

 1 horizontal cell x 1 vertical cell

 16384 bytes

 4000H

 2 horizontal cells x 2 vertical cells

 4096 bytes

 1000H
