3.2.1 Volume Descriptor Set

Volume descriptor set is a set of volume descriptors recorded in consecutive sectors from logical sector number 16 (FAD = 166).
There are five types of volume descriptors as follows. Of these, the volume partition descriptor is not used.

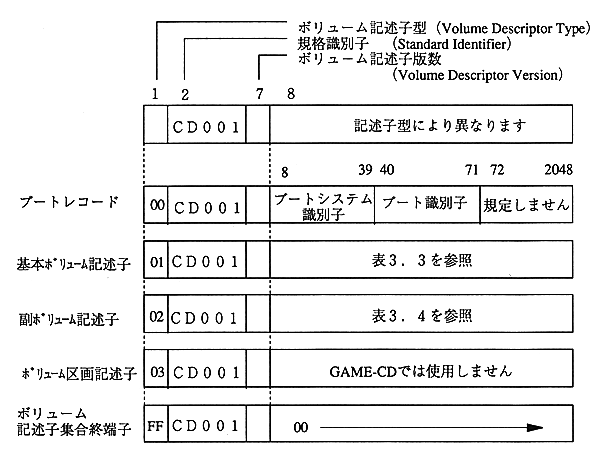

Figure 3.3 Volume descriptor

(1) Boot record

Table 3.2 Boot record structure
 byte position
 type
 Field name
 Description
 1
 2-6
 7
 8-39
 40-71
 71-2048
N

N
A
A

Volume Descriptor Type
Standard Identifier
Volume Descriptor Version
Boot System Identifier
Boot Identifier
Boot System Use

 Volume descriptor type
 Standard identifier 'CD001'
 Volume descriptor version
 Boot system identifier
 Boot identifier
 Not specified

In normal GAME-CD, the basic volume descriptor and volume descriptor set terminal are 1 sector each. It is recorded one by one.
These two sectors must be recorded.

Please use the secondary volume descriptor and boot record after understanding the usage.
