2.2 Disk layout
-
(1) Track layout
- Figure 2.1 shows the relationship between the track structure and the access key that specifies the position on the disc.

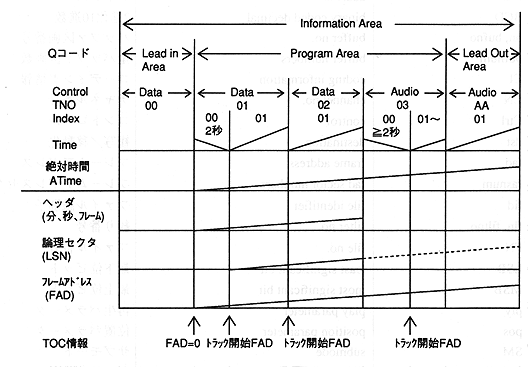

Figure 2.1 Relationship between track structure and access key
-
(2) Multi-session layout

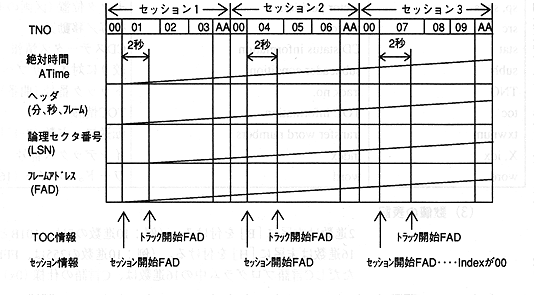

Figure 2.2 Multisession layout
