3. Basics

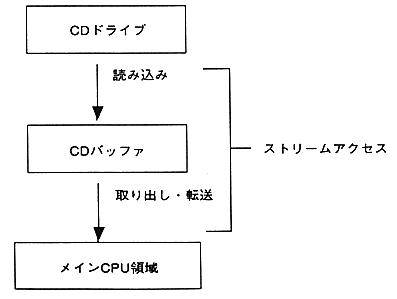

 Stream

 Flow of logically continuous data
 distinguished by subheaders.

 Stream key

 Key to read stream into CD buffer. It consists of frame
 address range, file number (FN), channel number (CN),
 submode (SM), and coding information (CI).
 The mask pattern
 can be specified for the submode (SM) and coding information (CI), and
 ({SM | CI} & mask pattern == comparison pattern)
 Read the sector.

 Stream group

 A collection of multiple streams.

 final stream

 The stream that is regenerated last in the stream group.

 Loop start stream

 Return
 destination stream after playing the last stream of the stream group.

 Number of loops

 Number of times the
 pickup is moved to the loop start stream after playing the final stream.

 Transfer start FAD

 Pickup that starts transferring data read into the CD buffer to a buffer in the program Position of.

 Transfer gate

 Gate used to transfer the data read into the CD buffer to the
 buffer in the program . Closing this allows you to store the stream data in the CD buffer.
