4.6 Notes on adding / changing settings during CD playback
For this reason, the following functions must be issued at least 10 sectors before the target position.

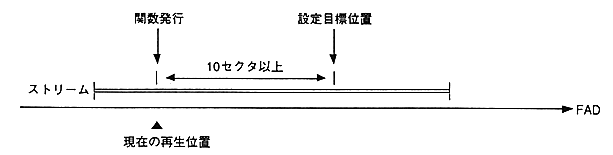

Figure 4.5 Function issuance timing
(1) Function with a delay before the setting becomes valid
Function | Function name |
|---|---|
Open stream by file identifier | STM_OpenFid |
Open stream with playback range | STM_OpenFrange |
Open Resident Stream | STM_OpenResi |
Close stream | STM_Close |
Set stream key | STM_SetKey |
Connect aperture and CD buffer section | STM_ConnectCdbuf |
