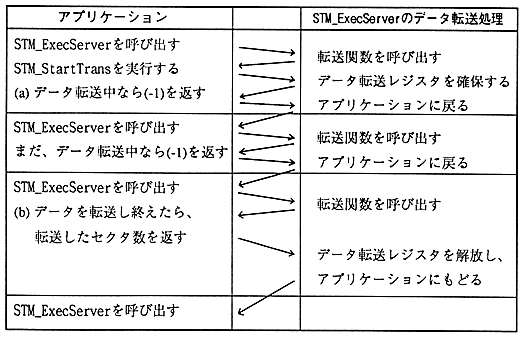

Figure 5.3 Operation when using transfer function
5.2 Combined use with file system
(a) Execute STM_SetExecGrp (NULL). (Return completed)
(b) Execute STM_NwSetExecGrp (NULL) and the function value of STM_ExecServer is
Call the server function until STM_EXEC_TSKEND. (Immediate return) After that, when reading by the file system is completed, reading of the stream is resumed by STM_SetExecGrp (grp).
・
・ / * Prefetch stream * /
STM_SetExecGrp (NULL); / * Put the drive in a pause state * /
GFS_NwFread(………);
while (1) {
if (GFS_NwExecOne (gfs) == GFS_SVR_COMPLETED) / * Read file * /
break;
STM_ExecTrans (stm); / * Transfer stream data * /
}
STM_SetExecGrp (grp); / * Restart reading the stream * /
