SEGA SATURN DEVELOPER'S MANUAL

3. Operation overview

The MPEG library has the following two operation modes for video playback.

(1) Movie playback mode

This is a mode for playing back movies. There are normal play state, freeze state, pause state, pause and freeze state.

(2) Still image playback mode

This mode plays back still images. Images of 4 banks at normal resolution and 1 bank at high resolution can be displayed.

∙ Audio can always be played. You can also synchronize video and audio.

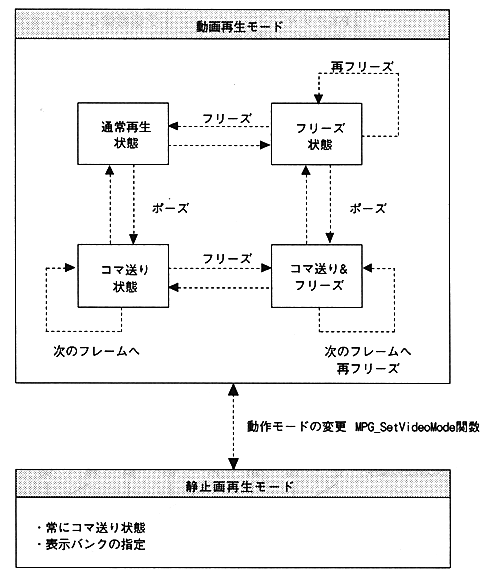

Figure 3.1 Operation mode
