Set the position, size, and enlargement ratio of the frame buffer window so that the display reference position (Pz ') and zoom point (Pz) overlap. In addition, any value can be specified for the magnification (FRX, FRY), and it is converted and set to a magnification that can be set by the LSI.

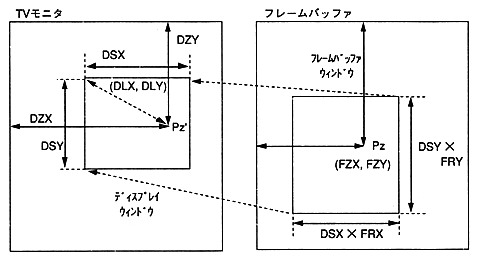

The conceptual diagram is shown below.

Figure 5.1 Display window and frame buffer window

The MPEG window control interface can realize the following visual effects with few parameters. The parameters to be operated when executing visual effects are shown below.

Table 5.1 Visual effects and control parameters
 Visual effects
 Parameters to control
 Effects
 Zoom
 FRX, FRY
 Fix the display window
 Define and zoom the displayed image
.
 Scroll
 FZX, FZY
 Move left and right
 up and down without changing.
 move
 DZX, DZY
 Zoom point unchanged Move the display reference position to.
 Peeping
 DLX, DLY
 Video display relative position While changing the
, you can watch the frame buffer video
.
 wipe
 DLX, DLY, DSX, DSY
 Video The magnification of the
 display window will change without changing the magnification.
 Expand
 DLX, DLY, DSX, DSY
 FRX, FRY
 The size of the display window
 changes as the size of the video changes
.
