1. Compile, assemble, and link source files to create a load module in SYSROF format.

2. Convert to binary module with ROF2BIN.

3. Create multiple files to be loaded from the memory file as CD-ROM files by repeating 1 and 2.
   Use
4. MFCAT to combine multiple files and create a memory file.

● How to use memory file

ICE to executing the target program is shown below.

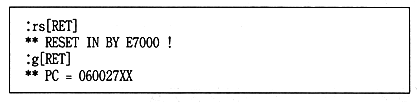

(1) Boot ROM boot

1 Boots the BOOT ROM.


2 When the logo is displayed, press [Ctrl-C].


  (2) Load
  1  Loads the target program and memory file according to the format of the ICE file read command.

 (3) Memory file settings
  1  To make the file system library recognize that a memory file is loaded,
Set the start address of the mail.

 2  Search the address of [_GFMC_base] from the map file of the target program and store the memory file there
Set the address where you loaded.

 (4) Target program execution
  1  Execute from the start address of the target program.
