Chapter 5 Release Notes

This chapter briefly describes the distribution form of the virtual CD emulator and the external specifications of the programs that make up the virtual CD emulator.

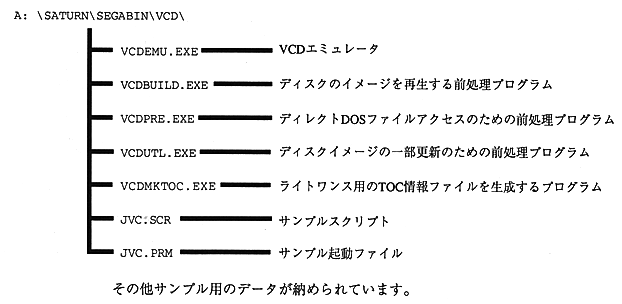

5.1 Directory structure

distribution program has the following directory structure:



Contains other sample data.

5.2 Release Program

■VCDEMU.EXE

Command:

VCDEMU

Command name:

Virtual CD emulator

Function:

Performs pseudo playback of CD.
An error can be forcibly generated during pseudo playback.

Format:

VCDEMU file name body part [-f RTI file name] [-l log file name]
 [-j jumper setting position] [-u update information file]

Description:
If all
options are omitted, the file with the extension ".scr" in the specified body part is a script file, the file with the extension ".dsk" is a disk image file, and the extension ".rti" The file with is used as the default disk configuration information file. The log information file is not created.

If option "-f" is specified, the disk configuration information file name will be the specified file name.
