Set VolBias.
You can set a value between -128 and 127.

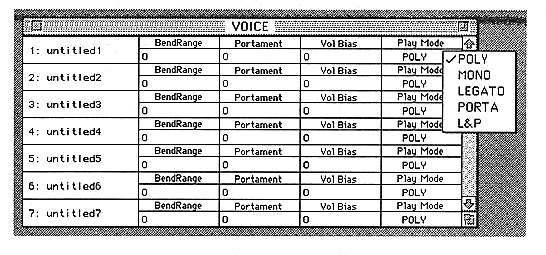

MODE
Displays the play mode.
Select POLY, MONO, LEGATO, PORTA, L & P from the pop-up menu.
PORTA stands for PORTAMENTO, L & P stands for LEGATO & PORTAMENTO.

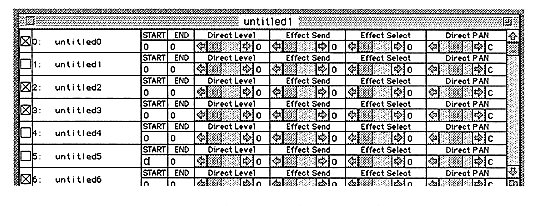

● Layer window
TheChange the layer parameters.
The parameters set in this window are as follows:
FM connection carrier check box
When ON, it becomes a base slot. (Multiple cases possible)
This is used in the FM connection window. For details, refer to “■ FM connection window” in 7. Window.
