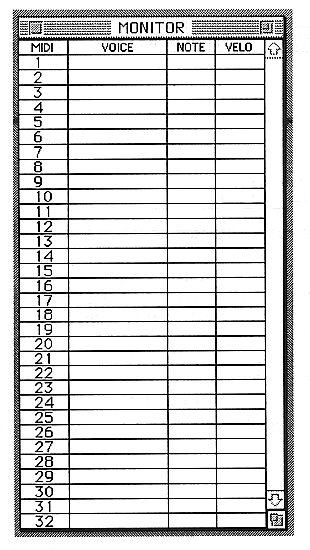

■ MONITOR window
When this window is displayed, MIDI monitoring can be performed in real time via SCSI.
Displays the MIDI channel program change (SCSP voice name), notes, and velocity.
MIDI
MIDI channel.
0 to 31 is fixed and displayed.
VOICE
SCSP voice name corresponding to the program change of the MIDI channel received by SCSI
It is displayed.
NOTE
Displays the note received via SCSI.
VELO
Displays the velocity number received via SCSI.
