Voice

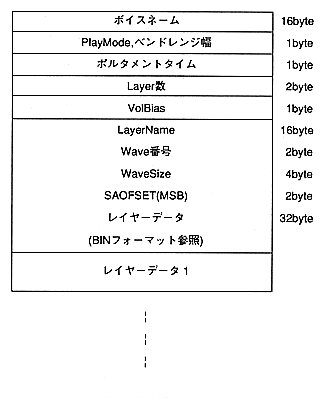

This data is for voice. First, the voice name is 16 bytes in ASCII code at the beginning. Next, we have the following data.
 Play Mode
: Specifies the poly, mono, legato, portamento, legato & portamento sound modes.
 Bend range
: Specify the pitch bend change range from 14 levels (0 to $ D).
 Portamento Time
: Specify the time in 128 steps from 0 to $ 7F.
 Layers
: The number of layers used for this voice.
 VolBias
: Specifies the volume of the layer that is sounded in the Voice. Can be specified with a sign.
 LayerName
: The name of the layer you are using.
 Wave number
: Contains the wave number used in this layer.
 WaveSize
: Contains the wave size used in this layer.
