SCSPBIN format

The

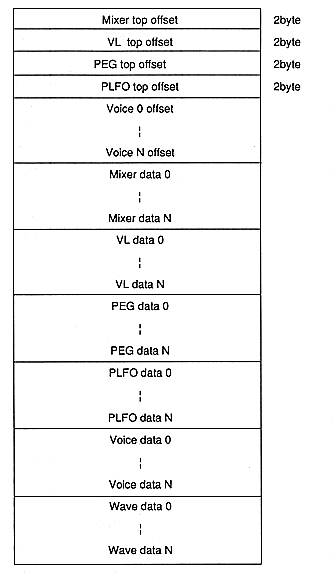

SCSPBIN format is as follows.

 Mixer top ofset: Offset address of mixer data start position
VL top offset: Offset address of the start position of velocity level conversion data
PEG top offset: Offset address of the start position of PEG data
PLFO top offset: Offset address of the start position of PLFO data
Voice offset: Offset address of each Voice data
Mixer data: Mixer data
VL data: Velocity level conversion data
PEG data: Pitch envelope data
PLFO data: Pitch LFO data
Voice data: Voice data
Wave data: Wave data
