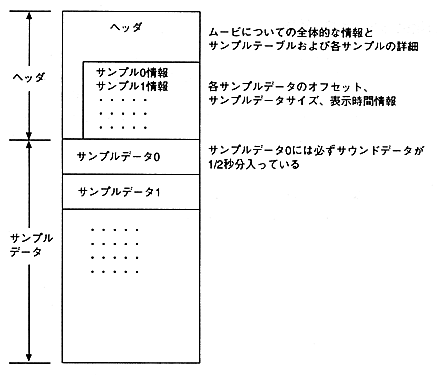

Figure 2.6 Cinepak for Saturn movie file format

To change the sound sampling frequency
Sounds handled by QuickTime editing tools are usually 44.1KHz, 22.254KHz, and 11.127KHz. Saturn, on the other hand, can play back sampling frequencies below 44.1KHz. If you want to use a sound other than 44.1KHz, 22.254KHz, or 11.127KHz, use a QuickTime editing tool such as Adobe Premiere to cut the original soundtrack, save it to an AIFF file, and use the sound utility. Downsample the AIFF file. Next, after compressing the movie with Cinepak, add the downsampled sound to the movie.

2.5 Cinepak compression

Use a compression utility such as Apple's MovieConverter to compress the movie with Cinepak in the pop-up menu of the compressor. Select the color depth Color (some compression utilities have thousands of colors). Note that Grayscale cannot be used. After that, set the necessary values ​​such as quality and frame rate and compress with Cinepak.
Any audio block can be set.

  Note MovieConverter does not properly process movies longer than 54 seconds. 54 seconds or more
Apple QuickTime Developer's Kit CD-ROM for processing   movies
Please use the Convert to Movie utility included in  .
