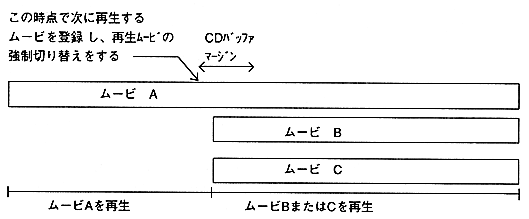

Figure 3.3 shows the case where movie A playback is interrupted and branch to movie B or movie C. When a branch condition occurs during movie A playback, the movie to be played next is registered (CPK_EntryNext function), and then the playback movie is forcibly switched (CPK_Change function). After playback of movie A is interrupted, movie B or movie C starts playing seamlessly.
Figure 3.3 Branch playback
Caution
