Zoom
“Zoom” is used to change the magnification of the collision editor window. Opened
Sometimes the window size can be increased to x1, x2, x3, x4.

Tool menu

Tool menu tear-off menu is used to create a collision frame. Drag and drop the tear-off menu near the collision editor window. Figure 2.13 shows the functions of the Tool menu.

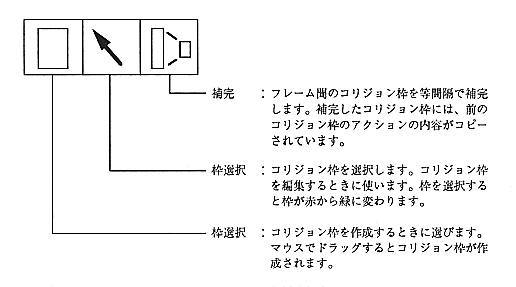

Figure 2.13 Tool menu functions

The state of the collision frame
The collision frame has the following two states.
Normal state: The collision frame is displayed in red.
Selected state: The collision frame is displayed in green.

Collision frame selection
Use the following methods to select and clear the collision frame.
Select: Select the frame selection and click the mouse in the collision frame.
Release: Select another collision frame or click with the mouse where no collision frame is displayed.

Collision frame priority
Collision frames can be stacked.
Collision frame priority is given in the order of creation. That is, the collision frame created first has the lowest priority, and the collision frame created later has higher priority.
