Startup method
● Format
AT_CNV Layout file name Split file name
(Example)
AT_CNV CRI.ALA CRI.ASP
● After conversion, a VCD file is created.
(Example)
∙ File created by converting CRI.ALA layout file.
≪CRI.ASP, CRI.PRE, CRI.AIL
3.4 Interleave file
The- interleave definition file is included in the script file created by the user.
Based on this script file, the virtual CD creates a CD-ROM image. An interleaved file is an alternating arrangement of collision data and video data for the time specified by the user.

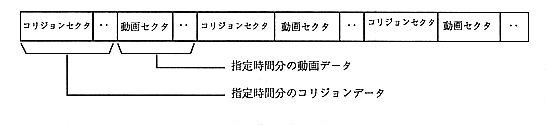

The following figure shows how to interleave video files and collision files.
Collision sectors and video sectors are placed in sectors with no gaps every 2048 bytes or 2324 bytes.
- Interleave file channel numbers are assigned as follows.
・ Video file channel number = 1
・ Collision file Channel number = 2
