Table 5.6 Object contents (3)
 Item
 Content
 In case of time

 Time type
 0: Normal

 Time playback time
 Time playback time
 hour: minute: second: frame

 number of events
 number of event values ​​


 Total Actions
 Total Action Values ​​for this Action

 Event value
 Value representing event type
 * 4

 Number of actions
 Number of actions

 Action value
 Action value to process
 * 3

 -------------------- * Repeat 3

 -------------------- * Repeat 4

Event value

event value is expressed in 2 bytes. The data format is as shown in Figure 2.1. When the bit is 1, the event is processed.

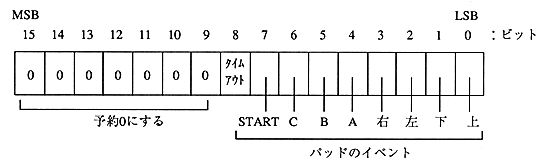

Figure 5.6 Event value data format

Action value

The
action value is expressed in 4 bytes. The first 2 bytes indicate the action type, and the remaining 2 bytes indicate supplementary data.

Table 5.7 Action values ​​
 Action type
 Supplemental data
 value
 content
 content
 0
 Do nothing

 1
Branches to the
tag number specified by the
 attribute.
 Indicates the tag number.
 (1 to 65535)
 However, if 0, nothing is done.
 2
 After object playback, branch to the specified
 tag number.
 10
 Displays the specified object.
 Indicates the object number.
 (1-65535)
 11
 Erase the specified object.
 Indicates the object number.
 (1-65535)
