void
Scroll function

slBitMapNbg0,1

Bitmap mode setting (NBG)

Format

void slBitMapNbg0(col_type , bmsize , bmadr)
void slBitMapNbg1(col_type , bmsize , bmadr)
Uint16 col_type ;
Uint16 bmsize ;
void *bmadr ;

Parameter

col_type color mode flag
bmsize bitmap size flag
bmadr Bitmap top address on VRAM (can only be specified every 200H)

Function

Change the screen to bitmap mode and set the color mode and bitmap size.

Return value

None

Remarks

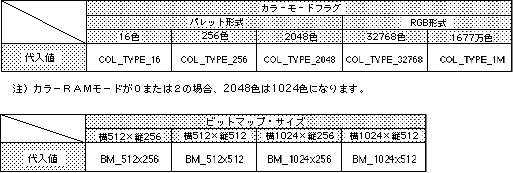

Refer to the table below for the flags to be assigned to parameters
However, only "NBG0" can specify 16.77 million colors.

Note) Each value in the above table is defined in “sl_def.h” included with the system.

Reference: HARDWEAR MANUAL vol.2 (VDP2)

slBitMapNbg0,1
