void
Scroll function

slKtableRA,B

Coefficient table control settings

Format

void slKtableRA(ktable_adr , mode)
void slKtableRB(ktable_adr , mode)
void *ktable_adr;
Uint16 mode;

Parameter

ktable_adr Coefficient table address in VRAM
mode Coefficient table control mode

Function

Set the VRAM address of the coefficient table in the register, and specify how to use the coefficient table and the structure of the coefficient table at the same time.

Return value

None

Remarks

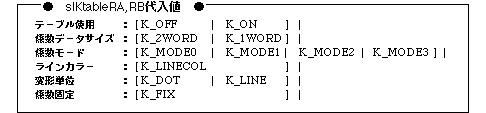

You can specify the following parameters:

Note) When fixed coefficient is specified for the parameter, the coefficient table is assumed to be prepared in advance, and the calculation of the coefficient table in real time is not executed.

Reference: Chapter 8 Scroll

slKtableRA,B
