void
Graphic function

slPutPolygon

Drawing a polygon model

Format

void slPutPolygon(pat)
PDATA *pat ;

Parameter

pat: Start address of the area where polygon data is stored

Function

Draws the polygon model specified as a parameter.
The polygon model is drawn on the screen using perspective transformation, depending on the translation and rotation components of the current matrix.

Return value

None

Remarks

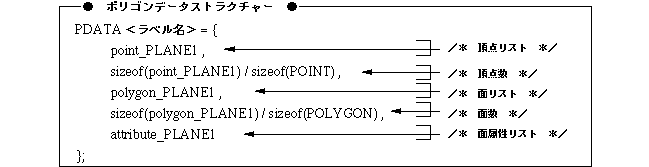

Polygon data is defined as a PDATA structure.
The PDATA structure contains polygon vertex list, vertex count, face list, face count, and face attribute information.
For details, refer to “Structure Reference: PDATA Structure” and “Chapter 2: Drawing” in Programmer's Tutorial.

Reference: Chapter 2 Drawing

slPutPolygon

Note) The PDATA structure is defined in “sl_def.h”.
