void
Scroll function

slZrotR

Z-axis rotation of RBG

Format

void slZrotR(angz)
ANGLE angz ;

Parameter

angz Rotation angle value of rotary scroll with respect to Z axis

Function

Rotating scroll Z-axis rotation.
The rotation axis is the Z axis (the front is the forward direction toward the screen), and the positive direction of rotation is to the right (clockwise) with respect to the axis.

Return value

None

Remarks

The coordinates specified by the function “slDispCenterR” will be the rotation center of the rotary scroll (the monitor rotates relative to the scroll map).

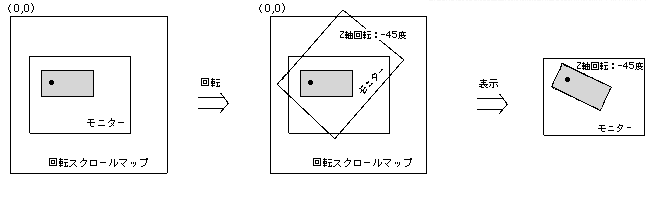

・ Rotating scroll rotation is captured by the image of the monitor rotating relative to the scroll map.

Reference: Chapter 8 Scroll

slZrotR
