Bool
Matrix function

slPushMatrix

Temporarily secure the matrix (up to 20 matrix nestings)

Format

Bool slPushMatrix()

Parameter

None

Function

Advance the pointer of the matrix buffer, copy the previous current matrix into it, and make it the new current matrix.

Return value

If the pointer allocation fails, the function returns FALSE.

Remarks

You can nest up to 20 matrix buffers.
If 20 is exceeded and an attempt is made to allocate a matrix buffer, the function returns FALSE.

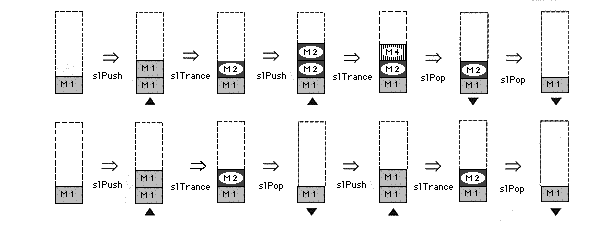

The following figure is an image model of stack operation.

Reference: Chapter 5 Matrix

slPushMatrix
